RayTemp® 8 infrared thermometer with type K thermocouple socket

Backlit display Centigrade Fahrenheit Auto-off Max-Min Type K mini plug Laser

*Please note this product has not been medically tested and we cannot guarantee accuracy if being used for this purpose!

RayTemp 8 infrared thermometer with type K thermocouple socket

814-045 ETI New

RayTemp 8 Infrared Thermometer with integral type K thermocouple socket

  • temperature range IR -60 to 500 °C, probe -64 to 1370 °C
  • includes differential & average temperatures
  • two-in-one thermometer
  • target ratio 12:1
  • sold exclusive of probe

More details

in stock

Add Matched Accessories

Add calibration certificate (lead time 14/21 days)

Add calibration add-ons

Add cases, boots & holders

£69.00 ex VAT

  £82.80 inc VAT

The RayTemp 8 Infrared Thermometer is compact, gun-shaped, lightweight and easy to use. Simply aim, then pull the trigger to display the temperature of the item being measured. The LCD display gives a digital read-out of temperature over the range of -60 to 500°C.

This infra-red thermometer has a clear, easy to read, LCD display with low battery indication and incorporates an auto power off facility that turns the instrument off after 60 seconds, maximising battery life. The RayTemp 8 now features an eight dot circle laser indicator, which allows you to precisely target the diameter of the area to be measured. As you move closer or further from the target the laser circle changes diameter.

The RayTemp® 8's three-button keypad allows the user to select °C/°F and max/min. Additionally, the difference between the maximum and minimum temperature and the average temperature can be displayed.

Two instruments in one

The RayTemp® 8 infrared thermometer incorporates a miniature thermocouple type K probe socket (probe not supplied) that enables a wide range of type K thermocouple probes to be used for a variety of temperature measurement applications, including air, liquid and surface temperatures.

To add recommended probes and other accessories select your choices from the 'Add Accessories' dropdowns, then click 'Buy Now! button.

For details of more compatible type K thermocouple probes, please click here.

available as a complete kit
The RayTemp® 8 together with a penetration probe is available as a kit. Each infrared thermometer kit is supplied in a useful ABS carrying case with a tub of 70 anti-bacterial Probe-Wipes. To view kit - click here.
Each infrared thermometer kit contains:

  • 1 x 814-045 RayTemp® 8 thermometer

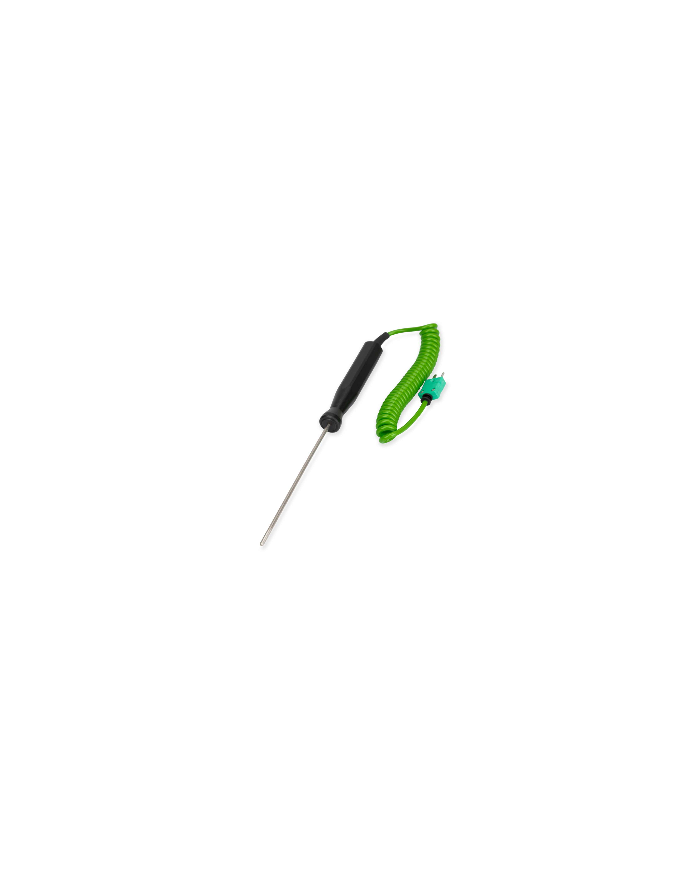

  • 1 x 123-160 penetration probe
  • 1 x 836-032 tub of 40 UniWipes anti-bacterial wipes
  • 1 x 834-740 ABS carrying case.

Click here to read our infrared thermometer guide!

Click here for some useful infrared thermometer tips.

For an emissivity table click here


range - infrared:-60 to 500°C
range - probe:-64 to 1370°C
resolution:0.1°C or °F (-9.9 to 199.9°C) or 1°C
accuracy - infrared:±2 °C or ±2 % of reading whichever is greater
accuracy - probe :±1 °C or ±1 % of reading whichever is greater
field of view:target ratio 12:1
emissivity:0.95 default - adjustable 0.01 to 1
battery:2 x AAA alkaline
battery life:180 hours continuous use
display: custom LCD
dimensions:40 x 66 x 155mm
weight:185 grams
case material: ABS plastic
guarantee: one year
measurement scale: Celsius/Fahrenheit

RayTemp 8 User Manual

User manual for the RayTemp 8 infrared thermometer

Download (419.3k)

814-045 C of C

814-045 RayTemp 8 certificate of conformity

Download (232.61k)

IR Care Guide

Infrared Best Practice Guide

Download (312.43k)

814-045 Battery SDS

Safety Data Sheet for 814-045 RayTemp 8

Download (152.8k)
