MicroTherma 1 microprocessor thermometer with automatic re-calibration

221-091

5024368210913

brand: ETI

New

MicroTherma thermometer with in-built microprocessor for automatic re-calibration

  • ±0.2 °C high accuracy, 0.1 °C resolution over the full range
  • multi-input type K, J, T, R, N, S & E thermocouple probes
  • FREE traceable certificate of calibration
  • should never need re-calibrating
  • MicroTherma 1 is sold excluding probe



More details

in production - backorder only

Two year guarantee Centigrade Fahrenheit Hold Auto-off Made in UK Max-Min Type K mini plug

£110.00 ex VAT

£132.00 inc VAT

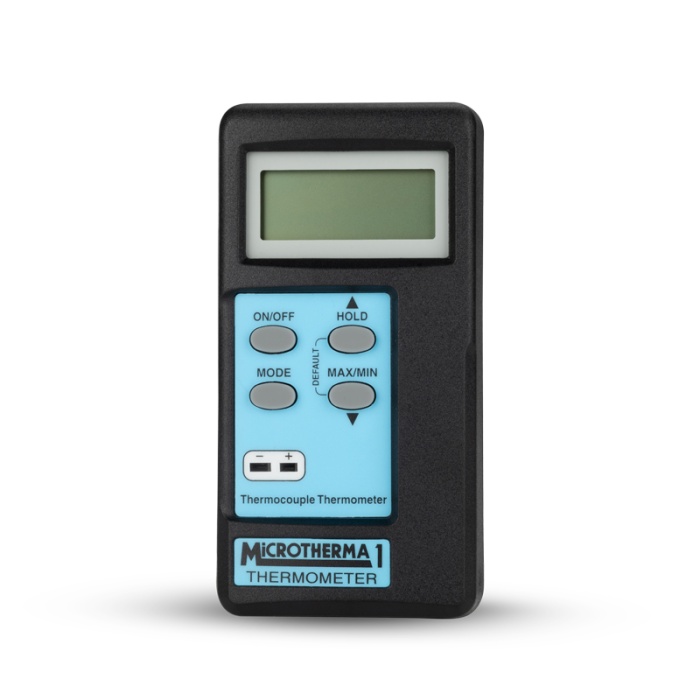

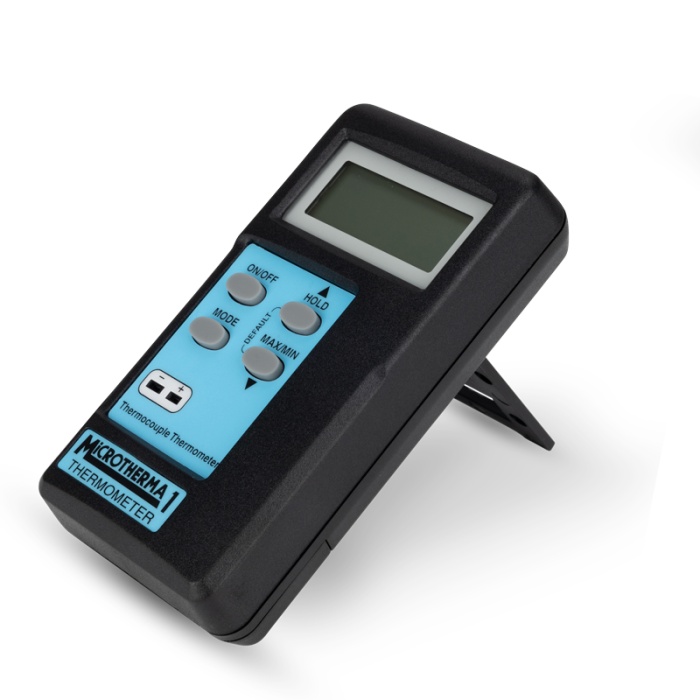

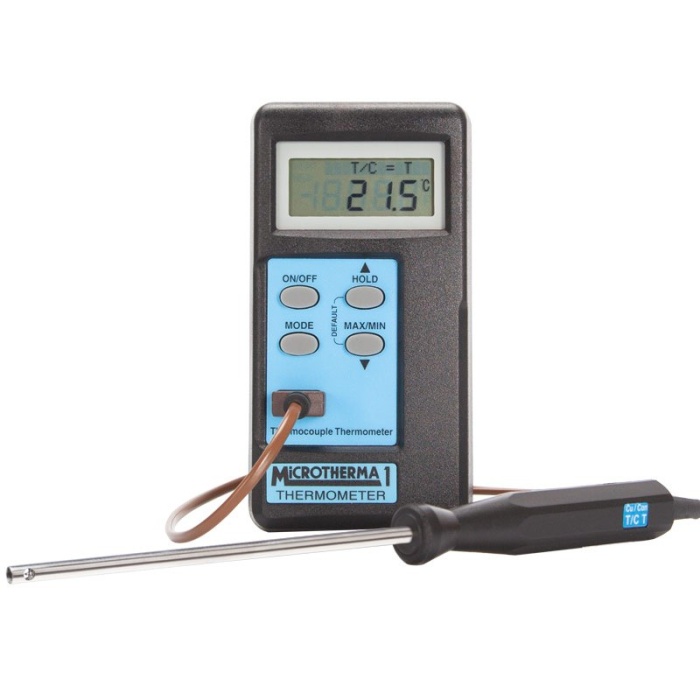

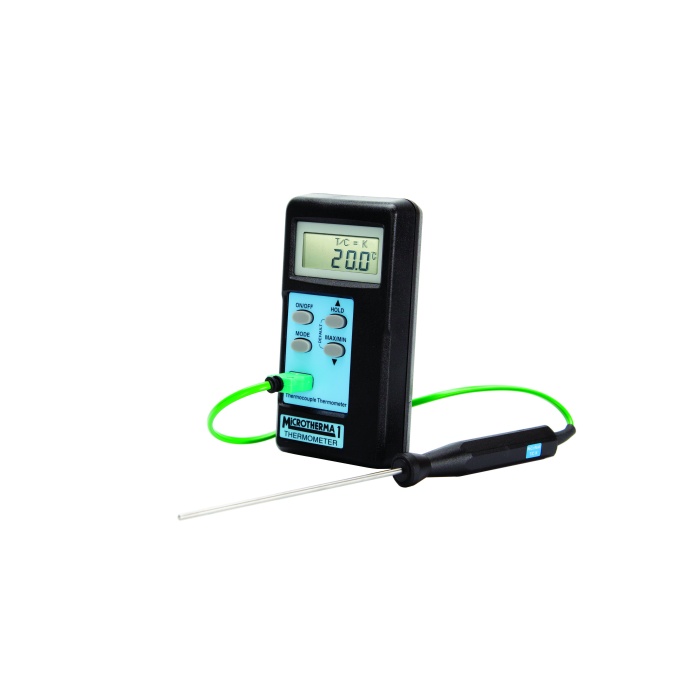

The MicroTherma 1 microprocessor based thermometer measures temperature over the range of -270 to 1768°C with a 0.1°C resolution over the entire range. Each MicroTherma 1 thermometer incorporates an easy to read, custom 4½-digit dual LCD display with open circuit, low battery, hold, max/min and °C/°F indication.

The thermometer should never need re-calibrating as the built-in microprocessor enables the instrument to continuously and automatically carry out self-diagnostic re-calibration. An additional feature allows the user to adjust the reading (±2.5°C) to offset any probe errors, correcting any inaccuracies of the thermocouple probe. Each thermometer thereafter will automatically store, display the offset and adjust the instrument for the known probe error, maximising system accuracy.

The MicroTherma 1 has the versatility of accepting any type K, J, T, R, N, S or E thermocouple probe, the probe type is simply selected through the mode button. The unit incorporates both max and min readings with a reset function and also features an auto-power off facility that maximises the battery life, turning the instrument off automatically after 30 minutes, this function can be disabled if not required. Other selectable parameters include: display contrast and internal CJC temperature reading.

The MicroTherma 1 is sold without a probe. For details of the extensive range of thermocouple probes available click here.



Add a probe:

penetration temperature probe
Penetration Temperature Probe
Stainless steel hand held penetration probe - type K or T...

£27.00
ribbon surface temperature probe
Ribbon Surface Probe
Straight ribbon surface temperature probe. 15 x 130...

£37.00
thermocouple air or gas probe
Air or Gas Probe
Thermocouple air or gas probe. Fast response...

£27.00



optional accessories
The protective PVC boot helps to protect your instrument against accidental damage. The clear polycarbonate wall-mounted thermometer holder stores the instrument safely when not in use (screws not supplied).



range:-270 to 1768°C
resolution:0.1 °C/°F
accuracy:±0.2°C ±1 digit
battery:2 x 1.5 volt AAA
battery life:1000 hours
sensor type:thermocouple type K, J, T, R, N, S & E - selectable
display: custom LCD
dimensions:35 x 73 x 141mm
weight:175 grams
case material: ABS plastic
country of manufacture: United Kingdom
guarantee: two years
measurement scale: Celsius/Fahrenheit
certification: FREE traceable calibration certificate

MicroTherma Instructions

Instructions for using ETI MicroTherma thermometers

Download (218.7k)

221-091 C of C

221-091 MicroTherma 1 certificate of conformity

Download (133.13k)
  • order code: 123-160
    £29.00
    £34.80 inc VAT

    in stock

    Stainless steel hand held penetration probe Ø3.3 x 130mm range -75 to 250°C accuracy (type K) ±0.5°C, 0°C to 100°C accuracy (type T) ±0.2 °C, -20 °C to 70 °C coiled lead option available

    £29.00
    £34.80 inc VAT

    in stock
  • order code: 123-159
    £32.00
    £38.40 inc VAT

    in stock

    Fast - response temperature probe - Type KØ3.3 x 100mm ideal for delicate foods, soft rubber and other similar materials temperature range -75 to 250°C accuracy ±0.5°C, 0°C to 100°C

    £32.00
    £38.40 inc VAT

    in stock
  • order code: 830-205
    £8.00
    £9.60 inc VAT

    in stock

    Protective PVC boot for MicroTherma series thermometers.protects against accidental damage made from durable PVC

    £8.00
    £9.60 inc VAT

    in stock
  • order code: 831-100
    £2.25
    £2.70 inc VAT

    in stock

    A5 temperature log book.holds six months of temperature records allows 3 readings per day log temperature, time and operators initials available in singles or a pack of 10

    £2.25
    £2.70 inc VAT

    in stock
  • order code: 832-115
    £9.00
    £10.80 inc VAT

    in stock

    2000 series thermometer holderkeeps your 200 series themometer safely wall hanging for ease of use

    £9.00
    £10.80 inc VAT

    in stock
  • order code: 123-300
    £29.00
    £34.80 inc VAT

    in stock

    Thermocouple air or gas probe - Type K.fast response ideal for chill cabinets, fridges, freezers etc probe temperature range -75 to 250°C accuracy ±0.5°C, 0°C to 100°C Ø4.5 x 130mm

    £29.00
    £34.80 inc VAT

    in stock

ThermaData Studio v3.1.0 (Windows 10)

ThermaData Studio v3.1.0 (Windows 7 & 8)

ThermaData Studio software for real-time data collection, graphing, statistical analysis, and exporting data in user friendly dashboard style directly to the PC. Available for free download. Single software suite works with ThermaData LoggersUSB Probes and BlueTherm Probes

Works with:

  • ThermaData Series I
  • ThermaData Series II
  • ThermaData Series RF
  • ThermaData Series SST
  • ThermaData Series Thermocouple
  • BlueTherm Probe/IR/Duo
  • ThermaData Series USB Temperature Probes

View the data you want to see, when you want to see it. Customise the ThermaData Studio dashboard view with real-time trend graphs, table views of recorded readings, statistical analysis, current temperature displays, summary data view and more. Import a map of your facility and with ThermaData RF Wireless and BlueTherm Loggers you can add each device in the map view. See exactly where every alarm condition is located.

ThermaData Studio Software

ThermaData Studio allows the connection of up to 16 RF Wireless Loggers and an unlimited number of ThermaData Series I & II Loggers.

Eliminate the need for multiple software systems with the ThermaData Logger software package. With only one software system, training, setup, download and temperature monitoring is easy.

  • Single software system works with over 40 different logging devices
  • User friendly Dashboard design
  • Allows real-time data acquisition (for compatible devices)
  • Graphing/trending chart with up to 32 traces
  • Statistical and table view
  • SMS alarm condition alerts
  • Import facility map for identifying logger by physical location
  • Combine and preview data from multiple loggers and files

CLICK HERE TO FIND OUT MORE!

DOWNLOAD (THERMADATA STUDIO- WINDOWS 7 & 8) SOFTWARE

DOWNLOAD (THERMADATA STUDIO- WINDOWS 10) SOFTWARE
