Stainless Steel ThermaData Data Loggers
Stainless Steel ThermaData data logger range - ideal for food, pharmaceutical and other high temperature applications.
- Integral USB interface for setup and download
- Wide temperature range -20 to 105°C
- Food grade 316 stainless steel housing
- Three models available
- IP66/67 waterproof
- UKAS 3 point certificate available at extra cost

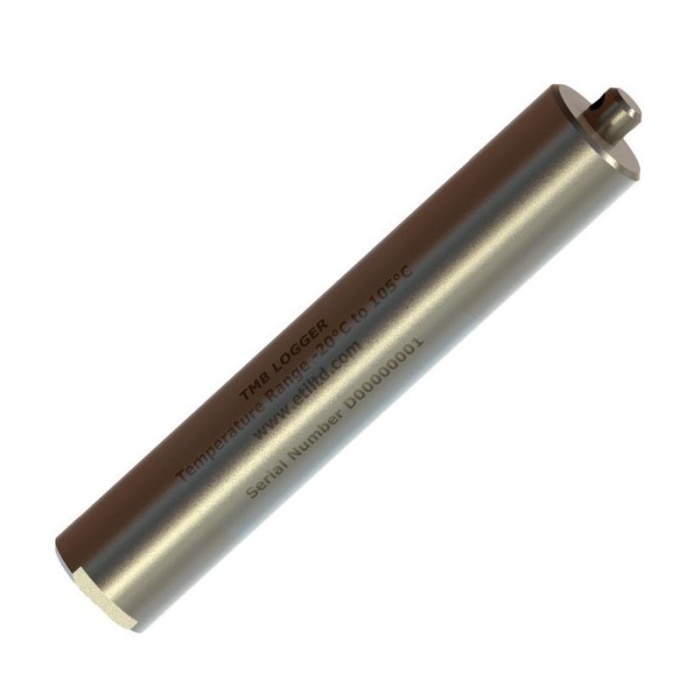

Stainless steel data-loggers that are ideal for food, pharmaceutical and other applications where a high temperature data-logger is required. The Stainless steel ThermaData logger is housed in a waterproof, food grade 316 stainless steel case to protect the logger from corrosion, impact and moisture (IP66/67).

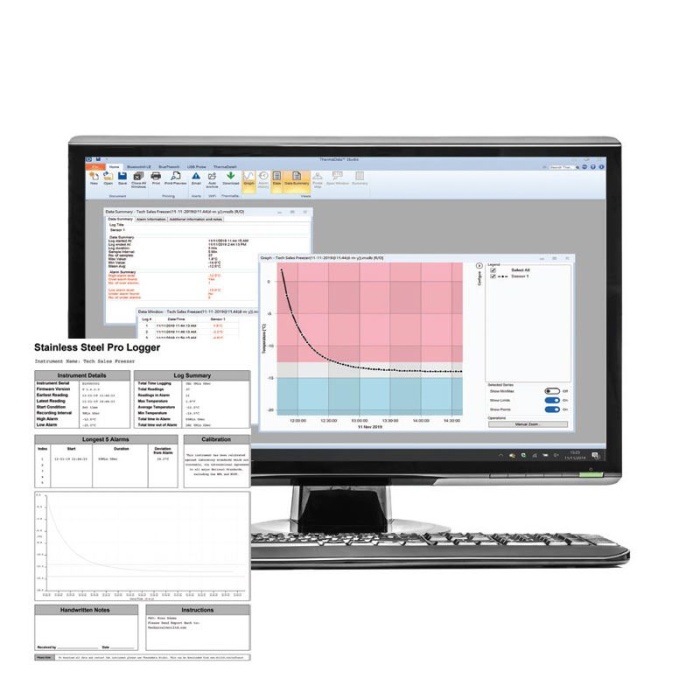

The ThermaData logger software allows the user to programme the logging sample/interval rate (1 to 255 minutes), the real-time clock, °C/°F, delayed start (maximum 23 hours, 59 minutes) and a 12-character user ID. The software also incorporates a password protected calibration adjustment feature that allows the user to check the calibration of loggers and make minor adjustments 0.5 °C (±3 °C).
By selecting continuous logging in the software options, it is possible to start the ThermaData logger only once and never have to reset its parameters again, even if downloaded regularly. Unlike most low cost loggers, the ThermaData stainless steel data logger will continue recording during and after downloading the data.
Three models of the stainless steel ThermaData loggers are available, one with with internal sensor and two with optional standard fixed probe dimensions of :
- Ø3.3 x 50 mm probe
- Ø4.5 to Ø3.3 mm tip x 100 mm probe
Each logger is supplied with a two metre USB lead and ThermaData Studio software.
USB Connection Point: Simply unscrew the end cap to access the USB port. This allows the user to connect the logger to a PC and upload any data collected
Data sheet
Range: | -20 to 105 °C |
---|---|
Max/Min: | Yes |
Resolution: | 0.5 °C |
Accuracy: | ±1°C (±0.5°C with calibration utility) |
Memory: | 2048 readings |
Sample Rate: | 1 to 255 minutes |
Battery: | 3.6 volt 2/3 AA Lithium |
Battery Life: | 3 years minimum |
Dimensions: | 22.5 x 129mm (exc probe) |
Weight: | 170 grams nominal - model dependent |
Case Material: | stainless steel |
Country of Manufacture: | United Kingdom |
Guarantee: | two years |
Water/Dust Resistance: | IP66/67 protection |
Measurement Scale: | Celsius/Fahrenheit |
OS: | Windows |
Specific References
EAN13 | 5024368156877 |
---|
