ThermaData 4 Channel Data Logger
ThermaData 4 Channel Data Logger
- Four channel type K thermocouple input
- Simultaneously measure four probe temperatures
- Programmable high/low Audible alarm
- Wide temperature range -99.9 to 1372 °C
- Biomaster product protection
Supplied excluding probes
The ThermaData 4 Channel Logger is housed in an ergonomic, ABS case that includes Biomaster product protection to reduce bacterial growth. An integrated rubber seal ensures complete water resistance and helps reduce the possibility of damage in harsh environments.
The 4 Channel Logger measures temperature over the range of -99.9 to 1372 °C with a 0.1 °C resolution, auto-ranging to 1 °C over the range of 300 to 1372 °C. At programmable intervals, the logger will record the temperature, up to a maximum of 64,000 readings (16,000 per channel).
A new multi-logging feature also allows this instrument to be started and stopped in order to map multiple processes, without downloading the data each time. Featuring an easy-to-read LCD, the 4 Channel Logger displays temperature, high and low limits, max/min recorded temperatures and volume level. The LCD can either be toggled from T1 & T2 to T3 & T4, or locked, using the DISPLAY / LOCK button.
Programmable audible alarms allow the user to preset high and low-temperature limits for any logging process. The alarm can be silenced by pressing MUTE on the front of the instrument.
Each instrument is supplied with a USB C lead, Free downloadable software and a traceable certificate of calibration.

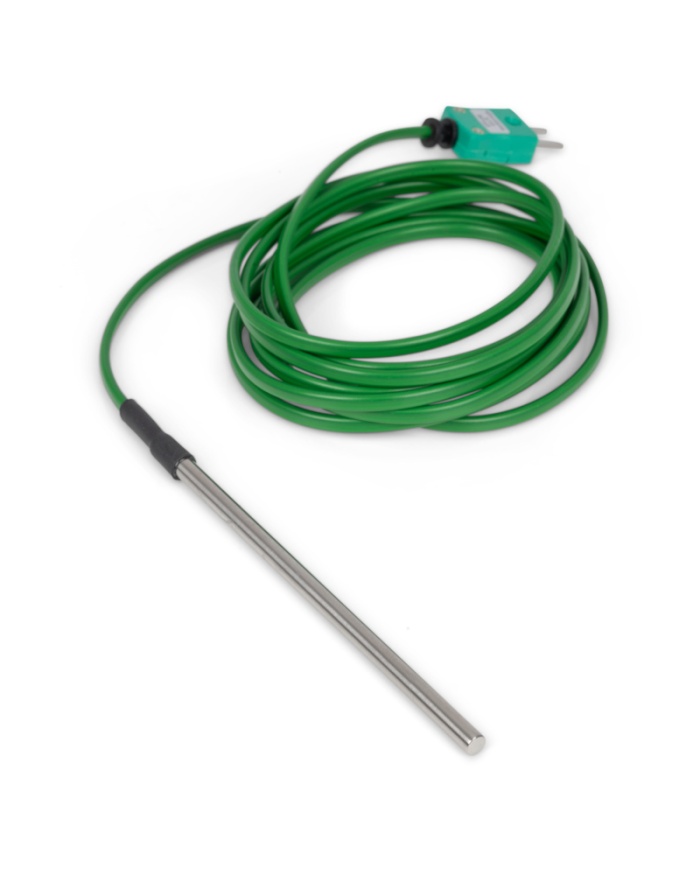

The ThermaData 4 Channel Logger is supplied excluding probes. We offer an extensive range of interchangeable type K thermocouple probes for a variety of different applications
Data sheet
Range: | -99.9 to 1372 °C |
---|---|
Operating Range: | -20 to 50°C |
Resolution: | 0.1 °C to 299.9 °C thereafter 1 °C |
Accuracy: | ±0.4 °C ±0.1% of reading |
Memory: | 64,000 (4x 16,000) |
Sample Rate: | 1 second to 255 minutes |
Alarm: | Yes |
Battery: | 3 x 1.5 volt AAA |
Battery Life: | 1 year (1 minute sample rate) |
Sensor Type: | K thermocouple |
Display: | custom LCD |
Dimensions: | 32 x 71 x 142 mm |
Weight: | 230 grams |
Case Material: | ABS plastic includes Biomaster product protection |
Guarantee: | two years |
Certification: | FREE traceable calibration certificate |
ThermaData® Studio Software DOWNLOAD NOW
- 100% Free. No Sign Up fee, or Subscriptions
- Connect up to 32 ThermaData WiFi instruments
- Extract data from multiple ETI ThermaData Instruments via USB
- User friendly and easy to use layout
- Real-time data acquisition
- Graphing charts with multiple selectable colours.
- Summary and table views for data analysis
- Automatically archives ThermaData WiFi data.
- Store Data Locally, without Cloud Storage Fees
- Enables push notifications to any mobile device with TD Link
What’s new in ThermaData Studio Version 6…
- New and improved user interface
- Improved user experience
- Enhanced search for functionality options
- Enhanced DishTemp Blue support
- Support for ThermaData four channel loggers
- Bug fixes
Both powerful and sophisticated, yet user-friendly, the ThermaData Studio software enables temperature data to be organised and analysed to provide management information.
The ThermaData Studio software has the ability to display up to 32 traces on a graph, the trace colours are user selectable. All files can be viewed as thumbnail icons for easy identification.
The software allows the user to programme the logging sample/interval rate (0.1 to 330 minutes), communication interval (sync) with PC, real-time clock, °C or °F and a manual start option. It is also possible to include a user ID for each logger.
The ThermaData Studio software is supplied as a FREE download. Please note: when initially ordering non WiFi loggers, it is necessary to order at least one suitable communications cable.
ThermaData WiFi loggers Use the unique ID of each logger to create a secure connection between the logger and ThermaData Studio software, that can be accessed and viewed anytime and anywhere with an internet connection.
Each logger communicates directly to the WiFi router at set intervals to push data through the internet into ThermaData Studio. The information is available to be analysed and exported into a report format.
ThermaData 4 Channel QSG
Quick start guide for 291-401 ThermaData 4 Channel Logger
Download (330.17KB)
