The Black Body Temperature Probe is designed to measure the effective ambient temperature of an environment by utilising the principles of a black body radiation. By absorbing radiant energy from its surroundings, the probe provides a more representative indication of environmental temperature than a conventional air temperature sensor.

  • Type K thermocouple sensor.

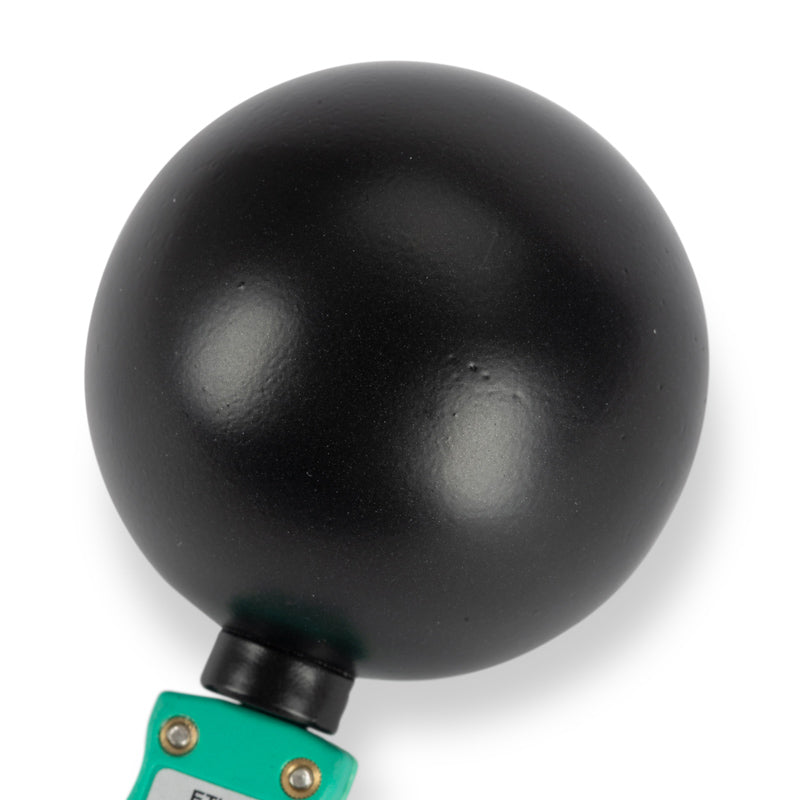

  • Copper sphere, approximately 50 mm diameter.
  • Matt black exterior coating to simulate black body characteristics and maximise radiant heat absorption.
  • Bright copper interior surface to minimise internal radiation losses.
  • Suitable for measuring combined effects of air temperature and radiant heat.
  • Ideal for oven monitoring, environmental temperature measurement, and process applications.
  • Robust construction for industrial environments.

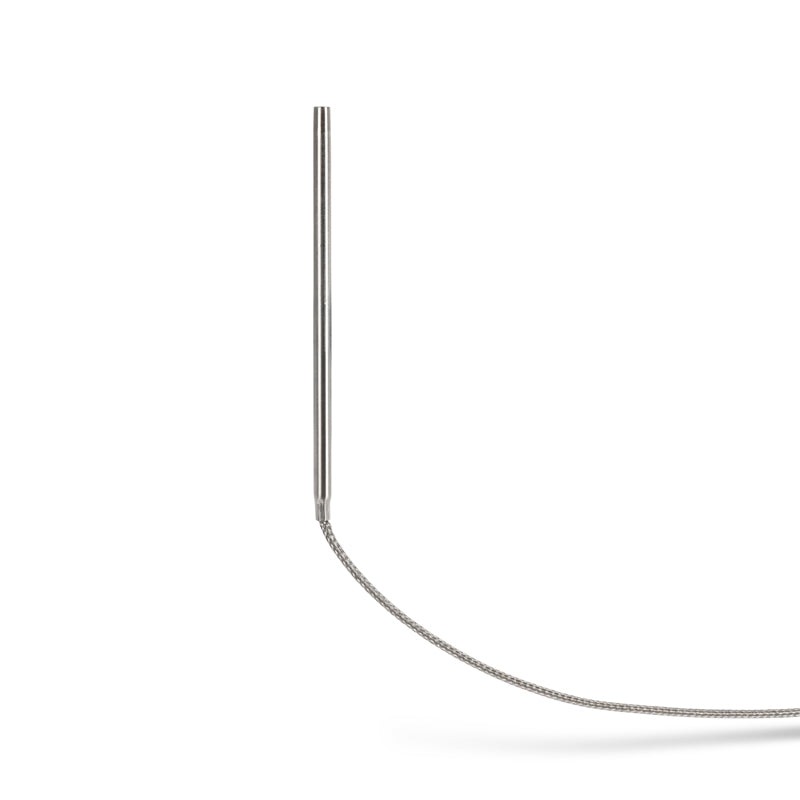

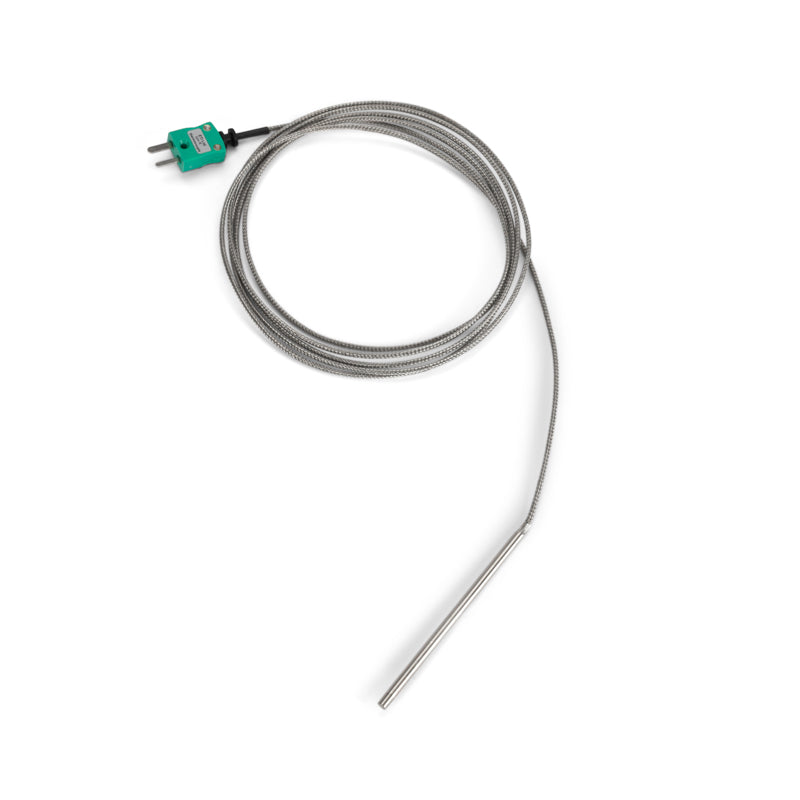

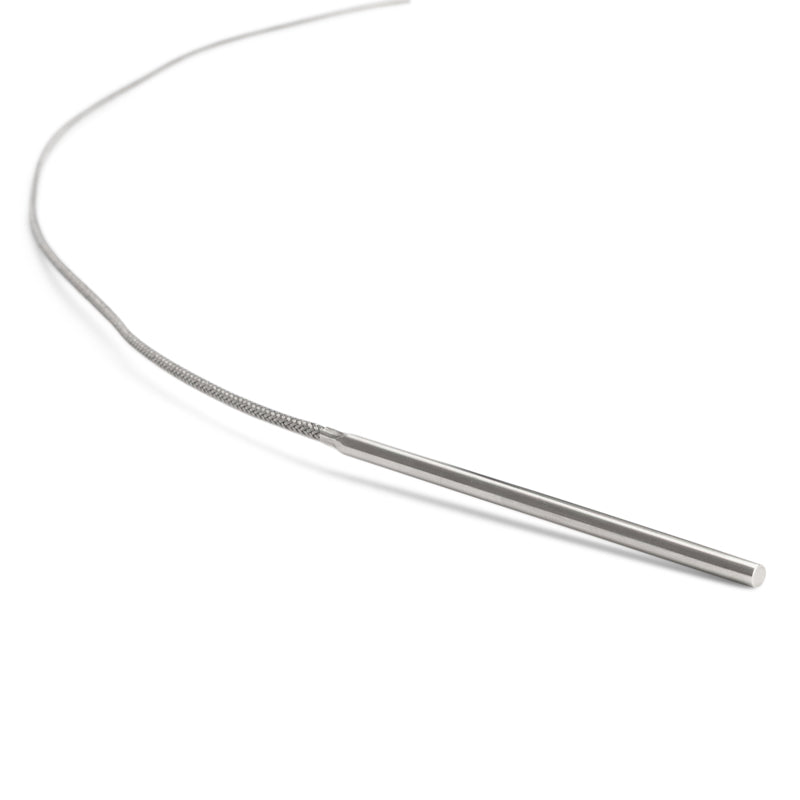

  • 2 metre glass fibre insulated cable with stainless steel over braided lead.

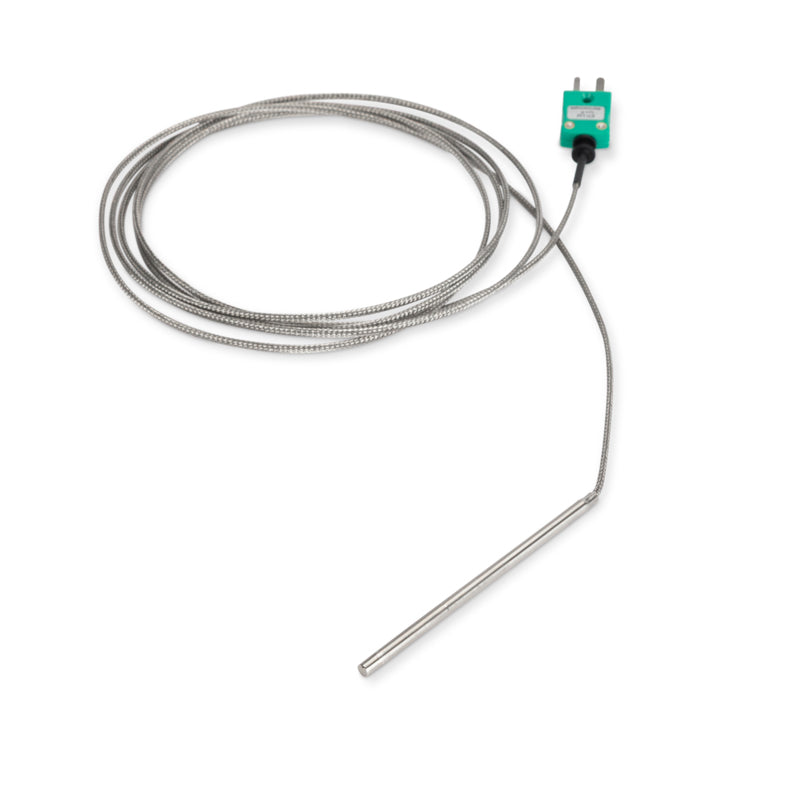

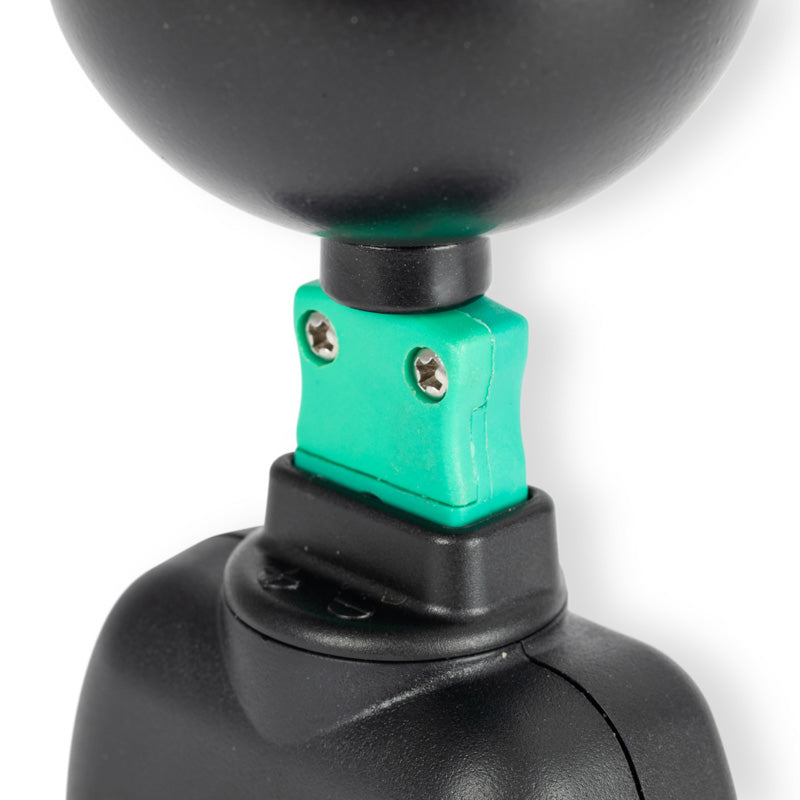

  • Fitted with miniature Type K thermocouple connector.

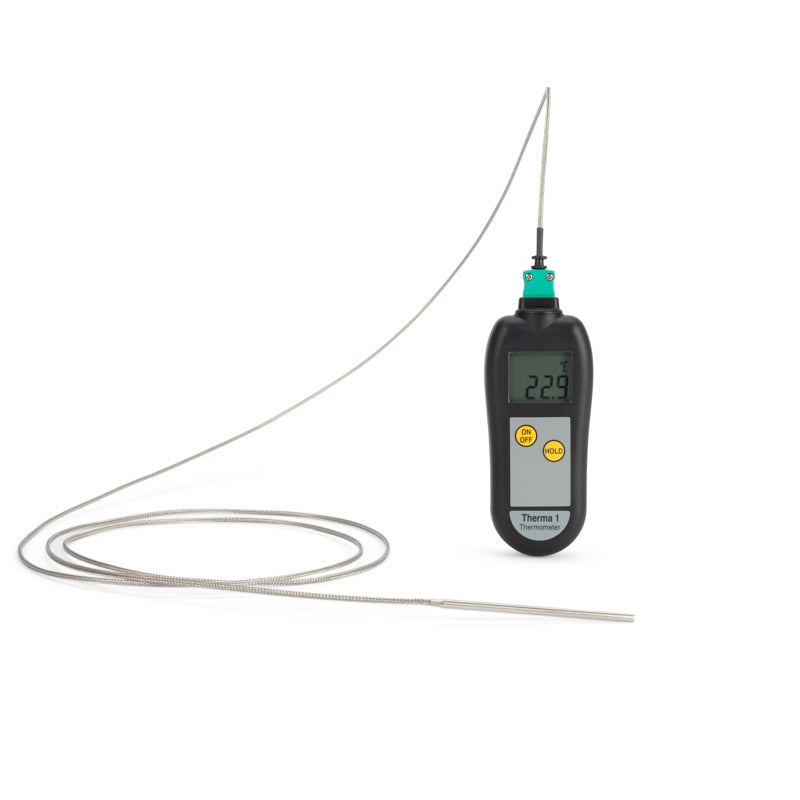

Therma 1 is not included in the price
Product code:
133-475

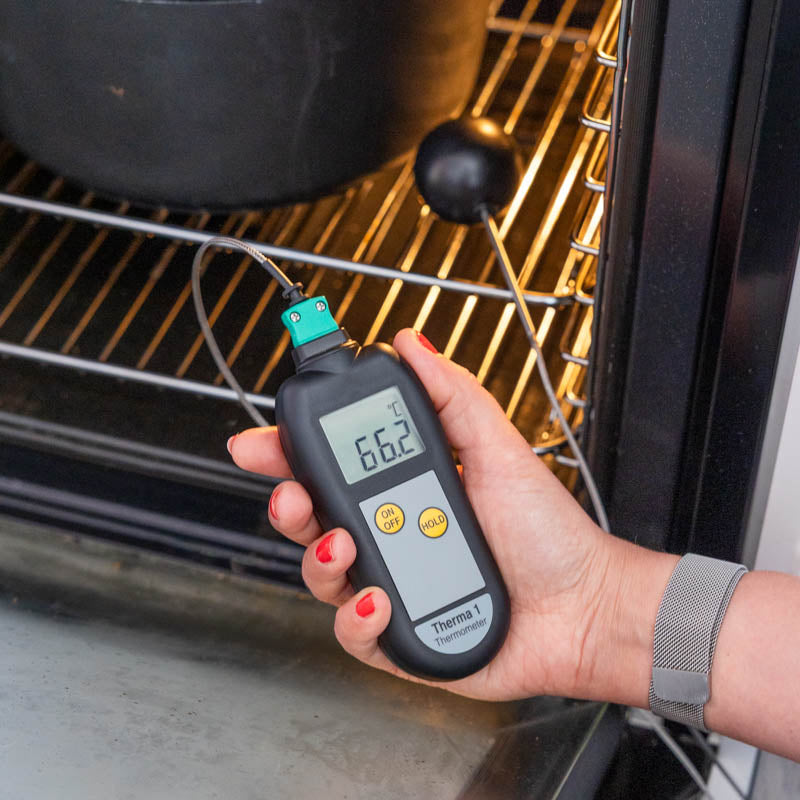

The probe is ideal for applications where radiant heat forms a significant part of the thermal environment, including industrial ovens, food processing equipment, power generation facilities, environmental monitoring, and hypothermia warning systems.

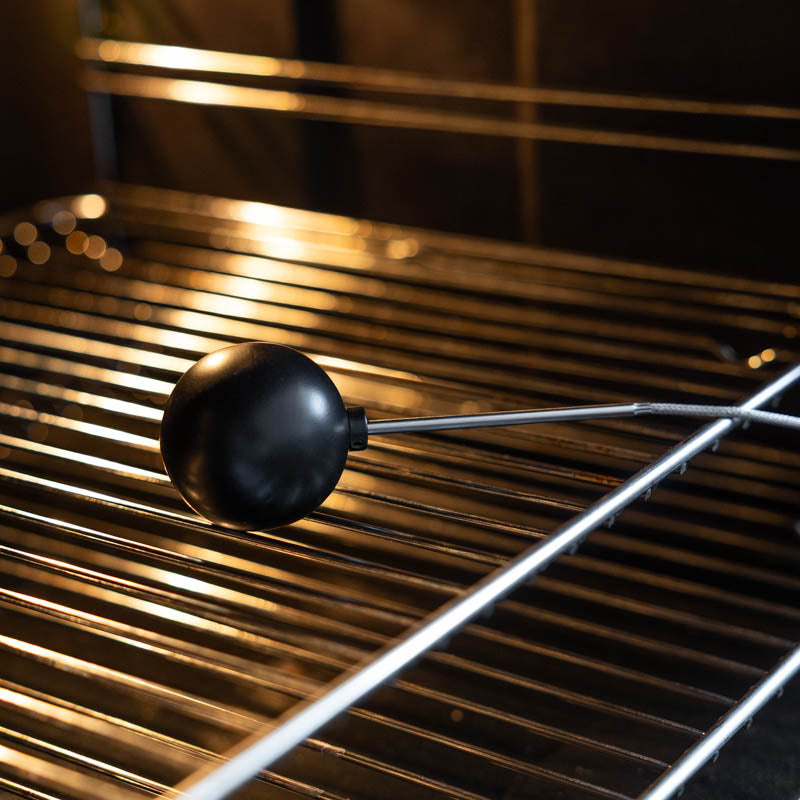

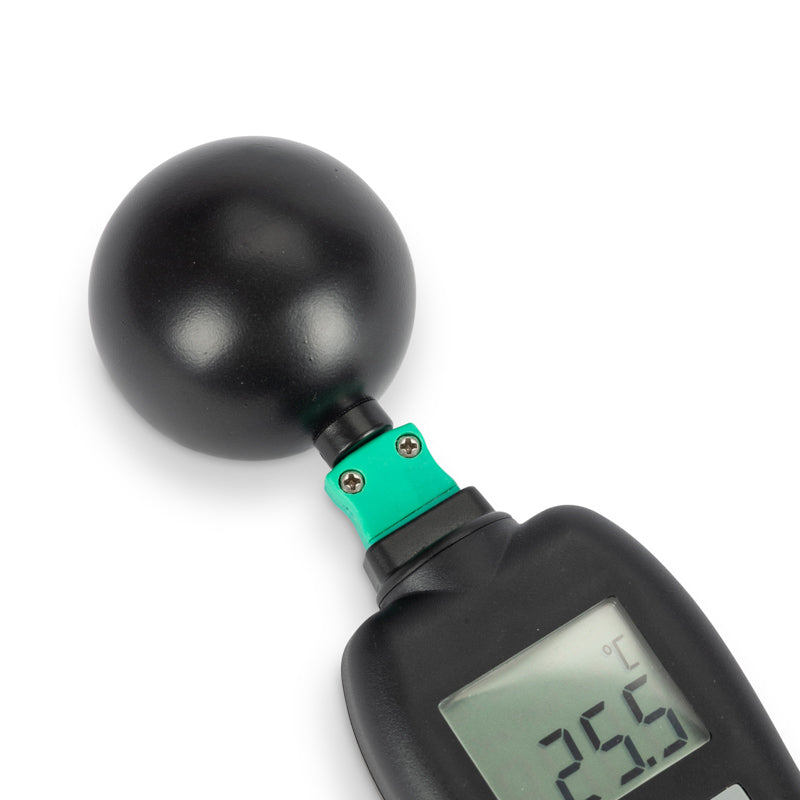

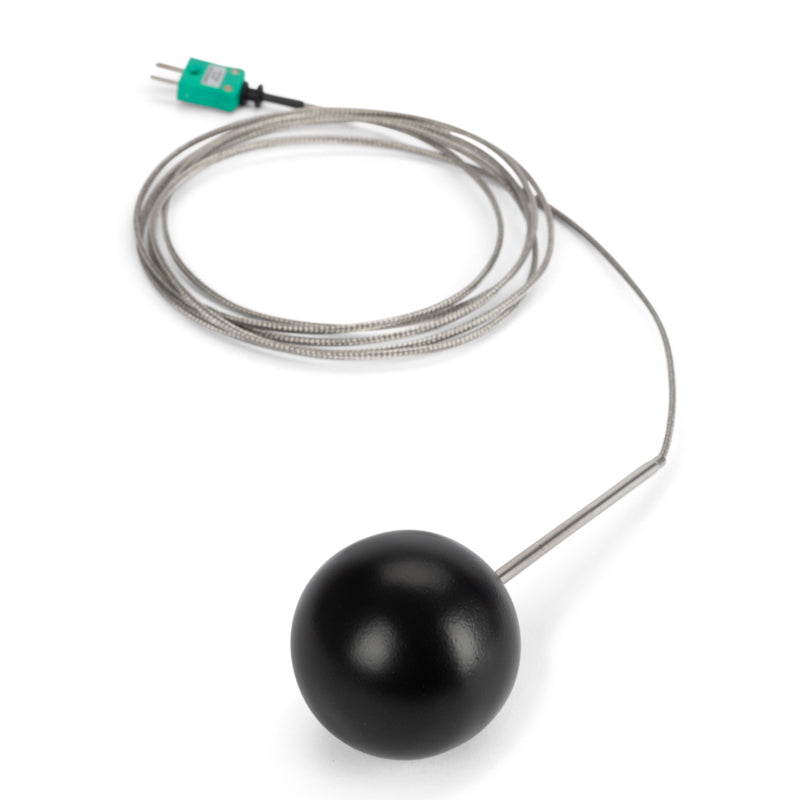

The sensing Type K thermocouple is housed within a copper sphere approximately 50 mm in diameter. The external surface of the sphere is finished in a matt black coating to maximise the absorption of incident radiant energy, while the internal surface is bright copper to minimise internal radiation losses. The thermocouple probe is supplied with a 2-metre length of glass fibre insulated thermocouple cable with stainless steel overbraid for enhanced mechanical protection and temperature resistance. The cable is terminated with a miniature Type K thermocouple plug.

Applications

  • Industrial and laboratory ovens
  • Food processing and cooking environments
  • Power generation and utility industries
  • Environmental and thermal comfort monitoring
  • Radiant heat measurement
  • Hypothermia and low-temperature warning systems
  • Research and development applications
